IST Solvent Recyclers




The Company

IST was founded in 1987 and has now become a leading specialist in the production and manufacture of thinners recycling machines.



IST has twenty (20) years experience with more than 12,000 installations worldwide.



Their commercial and technical production teams work closely allowing IST to understand the customers needs and offer the best possible solution.

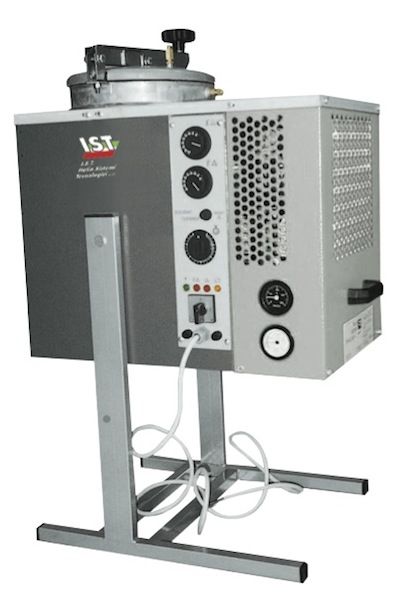

C1 & C2

The C1 & C2 models of thinners recycling machines are particularly suitable for small and medium sized workshops that have a limited solvent usage.



Function

The solvent to be recycled is poured into the stainless steel tank and brought to a boil. The vapors separate from the polluting substances, like ink, paint, grease, pigments, resin, pass through the cooling radiator where they are condensed and finally they flow down into the collecting tank.

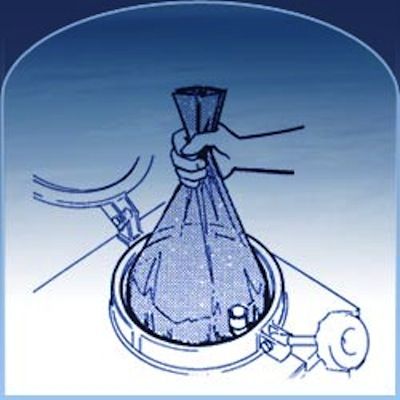

The residue left inside the tank can be removed by the pivoting system on the machine or by using the special distillation bags, which keep the tank clean.



Specifications

Model Capacity Power Dimensions Weight
C1 10 Litres 1.6Kw-230V/1/50-60Hz 60 x 45 x 100cm H 40kgs
C2 15 Litres 1.6Kw-230V/1/50-60Hz 60 x 45 x100cm H 45kgs

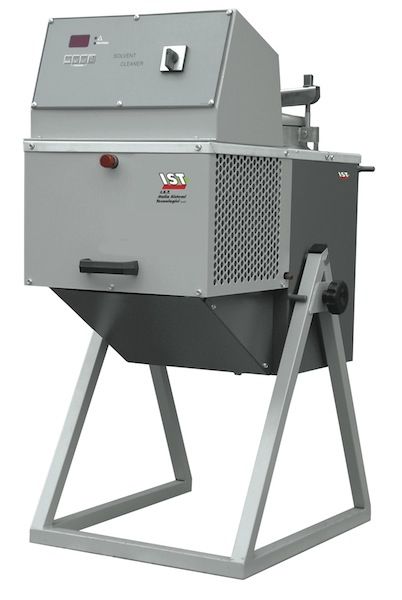

IST Digital Thinners Recycling Machines

These sized units are mostly suitable for workshops that have a medium solvent consumption. The working cycle of the machines is fully automatic and is driven by a digital microprocessor which enables several operational functions.



Function

The solvent to be reclaimed is poured into the stainless steel tank and brought to a boil. The vapors separate from the polluting substances, like ink, paint, grease, pigments, resin, pass through the cooling radiator, where they are condensed. Finally they flow down into the collecting tank.



The residue inside the tank can be removed by the pivoting system on the machine or by using the special distillation bags, which enable an easier tank cleaning.



Specifications

Model Capacity Power Dimensions Weight
IST 10 N Digital 10Litres 1.6Kw – 220-230V/1/50-60Hz 50 x 72 x 105cm H 55Kgs
IST 15 N Digital 15Litres 1.6Kw – 220-230V/1/50-60Hz 50 x 72 x 105cm H 60Kgs
IST 22 N Digital 25Litres 2.5Kw – 220-230V/1/50-60Hz 60 x 85 x 110cm  H 75Kgs
IST 42 N Digital 42Litres 3.2Kw - 220-230V/1/50-60Hz 65 x 95 x 120cm H 100Kgs
IST 62 N Digital 62Litres 3.2Kw - 220-230V/1/50-60Hz 65 x 95 x 120cm H 115Kgs

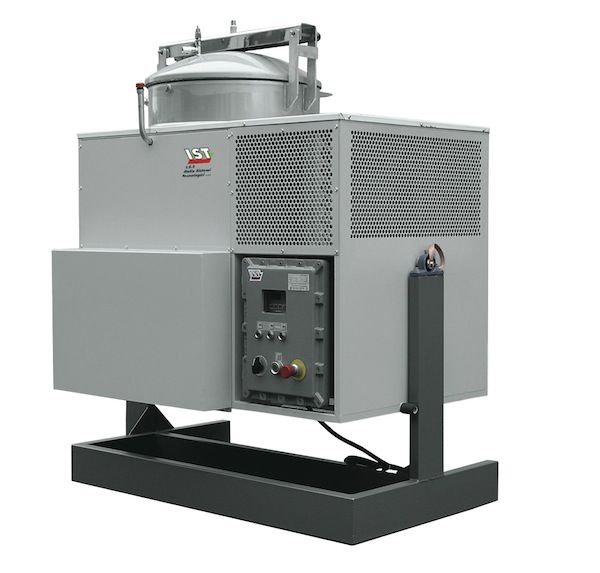

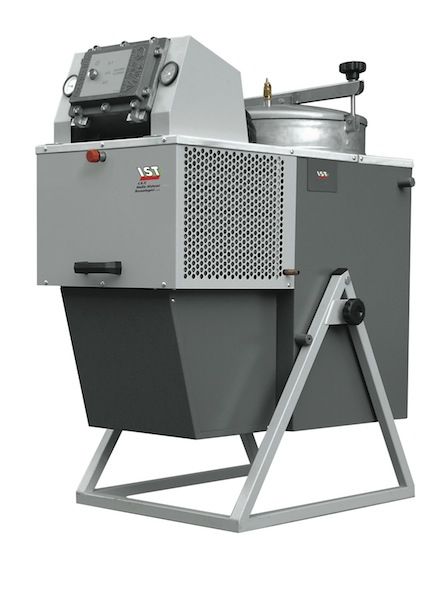

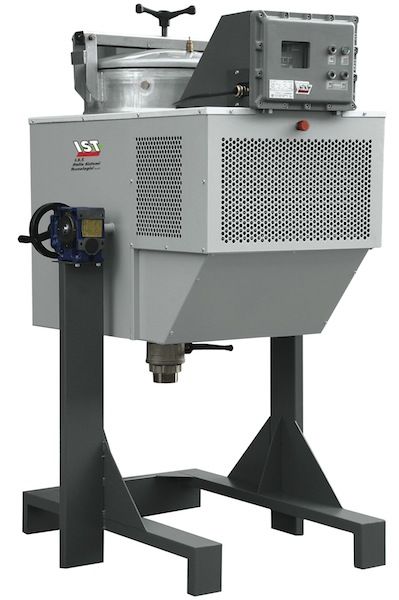

IST Explosion Proof Thinners Recycling Machines

These sized units are mostly suitable for workshops that have a medium solvent consumption. The working cycle of the machines is fully automatic and is driven by a digital microprocessor which enables several operational functions. The machines are manufactured according to the EExd and Euorpean ATEX Directive making them explosion proof.



Function

The solvent to be reclaimed is poured into the stainless steel tank and brought to a boil. The vapors separate from the polluting substances, like ink, paint, grease, pigments, resin, pass through the cooling radiator, where they are condensed. Finally they flow down into the collecting tank.



The residue inside the tank can be removed by the pivoting system on the machine or by using the special distillation bags, which enable an easier tank cleaning.



Specifications

Model Capacity Power Dimensions Weight
IST 10 ATEX II 3G 10Litres 1.6Kw - 220-230V/1/50-60Hz 50 x 72 x 105cm H 55Kgs
IST 15 ATEX II 3G 15Litres 1.6Kw - 220-230V/1/50-60Hz 50 x 72 x 105cm H 60Kgs
IST 22 ATEX II 3G 25Litres 2.5Kw - 220-230V/1/50-60Hz 60 x 85 x 110cm H 75kgs
IST 42 ATEX II 3G 42Litres 3.2Kw - 220-230V/1/50-60Hz 65 x 95 x 120cm H 100Kgs
IST 62 ATEX II 3G 62Litres 3.2Kw - 220-230V/1/50-60Hz 65 x 95 x 120cm H 115Kgs
